Red Sea Reefer Reef Frame 170

Red Sea REEF-FRAME Aquarium Systems

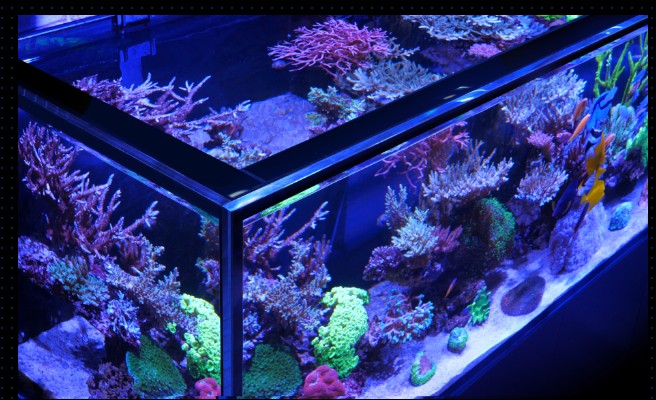

The Red Sea REEF-FRAME series combines modern aquarium design, reinforced construction, and flexible filtration to create the ideal foundation for a thriving reef aquarium. Built with ultra-clear glass, eurobracing, and marine-grade plywood cabinets, these reef-ready systems offer exceptional strength, stability, and a clean, contemporary appearance.

Available in four sizes, REEF-FRAME 170, 250, 350, and 500, these systems are designed for hobbyists who want the freedom to customize their equipment and build their ideal reef aquarium.

Key Features

• Ultra-clear glass with reinforced eurobracing

• High-quality euro-silicone for lasting structural integrity

• Extra-strength marine-spec plywood cabinet

• Adjustable cabinet feet for precise levelling

• Available in black, white, and oak finishes

• Quiet downflow system with improved circulation

• Hydrodynamic plumbing with precision gate valve

• Reef Spec sump with adjustable skimmer water level

• Removable mechanical filtration compartment

• ReefMat-ready design for easy installation

• Optional refugium compartment (except REEF-FRAME 170)

• Integrated bubble trap to reduce microbubbles

• ATO-ready sump configuration

• Single or dual return outlets depending on model

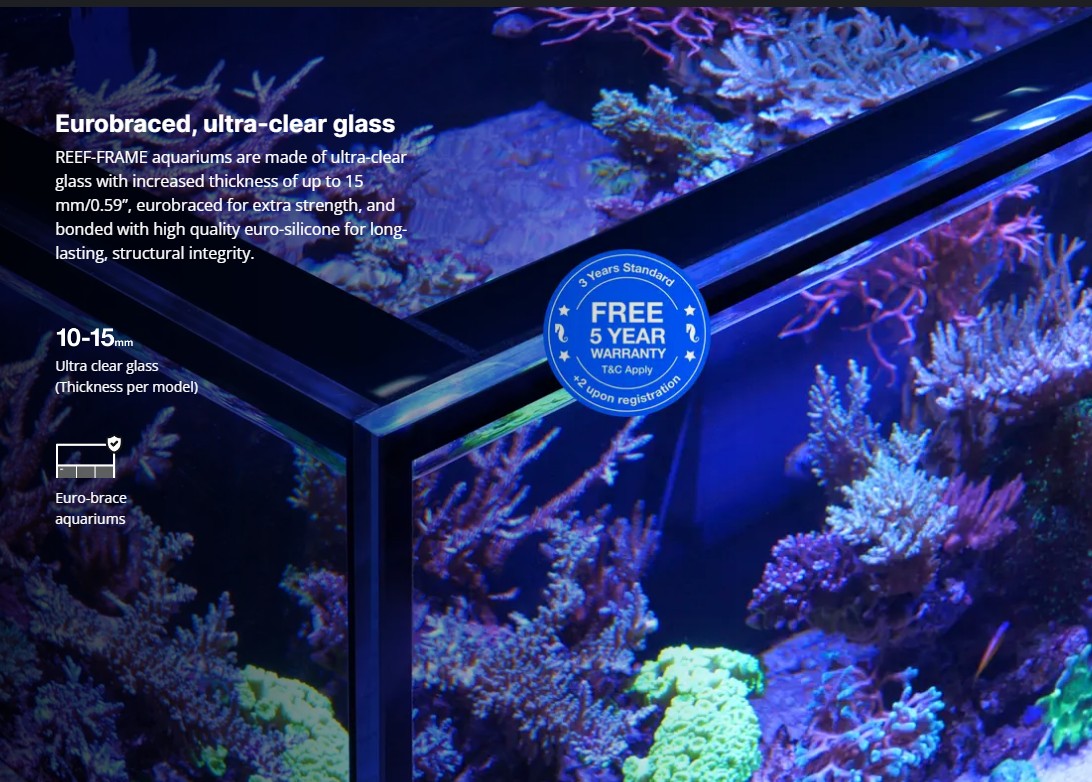

Reinforced Ultra-Clear Glass

REEF-FRAME aquariums feature premium ultra-clear glass up to 15 mm thick, reinforced with eurobracing for added strength. High-quality silicone bonding provides excellent structural integrity and long-term durability.

Extra-Strong Cabinet Construction

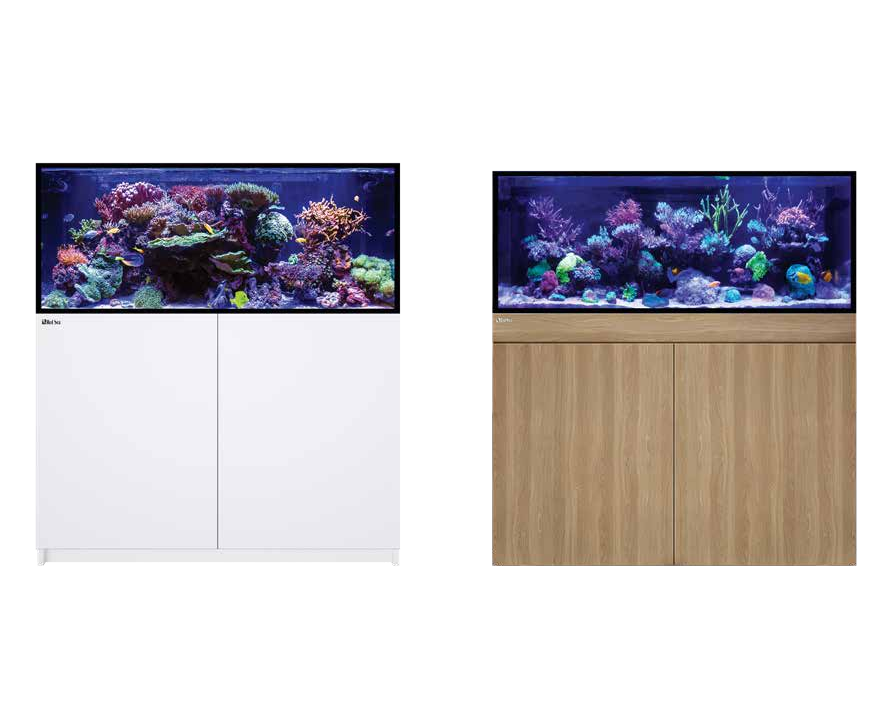

Each aquarium rests on a marine-spec plywood cabinet designed to support the entire glass structure. Adjustable feet ensure accurate levelling, while black, white, and oak finishes complement a variety of living spaces.

Quiet and Efficient Plumbing

An improved downflow system with enlarged piping and a rectangular profile promotes quiet, efficient water circulation. Curved 25 mm return outlets provide effective water distribution, with dual outlets on the 350 and 500 models.

Versatile Reef Spec Sump

The included sump features an adjustable-height skimmer chamber, bubble trap, and removable mechanical filtration section. The design accommodates Red Sea ReefMat filtration and offers an optional refugium compartment on select models.

• REEF-FRAME 170 Specifications

  • Total System Water Volume: 174 L (46 US gallons)

  • Display Aquarium Volume: 136 L (36 US gallons)

  • Sump Volume: 39 L (10.3 US gallons)

  • Display Dimensions: 60 x 53 x 50 cm

  • Total System Height: 137 cm

  • Front Glass Thickness: 10 mm

  • Side Glass Thickness: 12 mm

  • Bottom Glass Thickness: 10 mm

  • Back Glass Thickness: 8 mm

  • Bracing: Eurobraced

  • Return Outlets: 1 x 25 mm

  • Cabinet: Full-support marine-spec plywood

  • Refugium Compartment: Not available

  • ReefMat Compatible: Yes

Equipment and Customization

REEF-FRAME systems provide the aquarium, cabinet, plumbing, and filtration sump, allowing you to select the equipment that best suits your reef.

Lighting, circulation pumps, return pumps, protein skimmers, ReefMat filtration, controllers, and automatic top-off equipment are sold separately.

Available at Reef Supplies Canada

Build your ideal reef aquarium with the Red Sea REEF-FRAME series at Reef Supplies Canada. With four sizes and multiple cabinet finishes, these reef-ready systems offer a reliable foundation for a fully customized saltwater aquarium.

Please Note: All dimensions, capacities, and measurements are approximate and subject to change without notice.
